Builds a combined atom and bond scene from a PDB or SDF model.
generate_full_scene(
model,
x = 0,
y = 0,
z = 0,
scale = 1,
center = TRUE,
force_single_bonds = FALSE,
material = rayrender::glossy,
material_args = list(),
material_vertex = material_list(type = "phong")
)Arguments
- model
Model extracted from a PDB or SDF file.
- x
Default `0`. X offset, applied after centering.
- y
Default `0`. Y offset, applied after centering.
- z
Default `0`. Z offset, applied after centering.
- scale
Default `1`. Amount to scale the interatom spacing.
- center
Default `TRUE`. Centers the bounding box of the model.
- force_single_bonds
Default `FALSE`. Whether to force all bonds to show as a single connection.
- material
Default `rayrender::glossy`. Optional rayrender material used to initialize the mesh material when `material_vertex` is not supplied. Must be either `glossy`, `diffuse`, or `dielectric`.
- material_args
Default `list()`. Named list of additional arguments passed to `material`. Arguments supplied by raymolecule for colors and textures override entries with the same names. For example, use `list(gloss = 0.35, reflectance = 0.12)` with `rayrender::glossy`, or `list(sigma = 0.4)` with `rayrender::diffuse`.
- material_vertex
Default `rayvertex::material_list()`. Mesh material. `diffuse`/`ambient` colors and `ambient_intensity` are determined automatically, but all other material properties can be changed.
Value
Raymesh scene
Examples

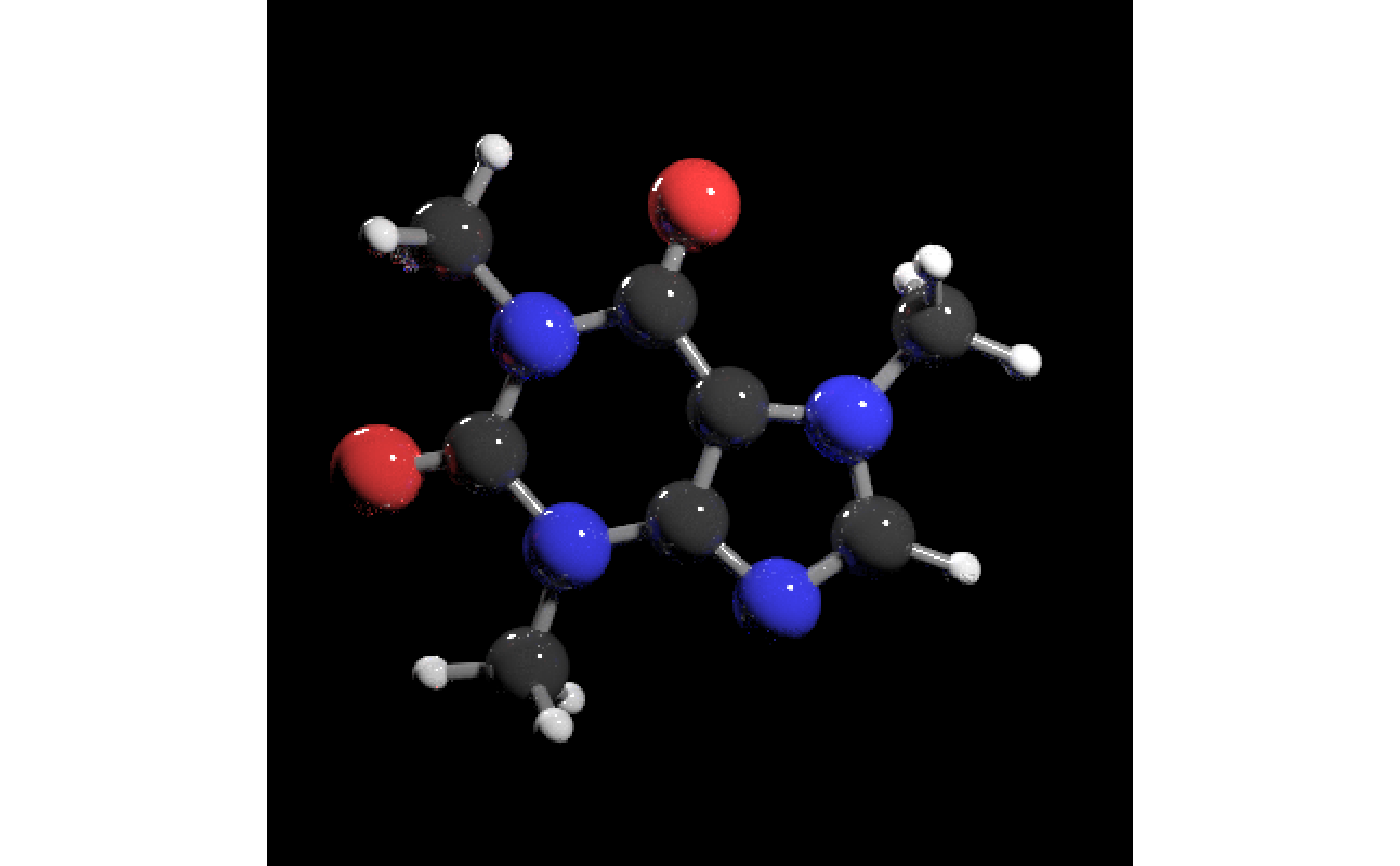

molecule_model = read_sdf(get_example_molecule("caffeine"))
# Start with a centered raster scene that combines atom spheres and bond
# geometry using the default atom colors.

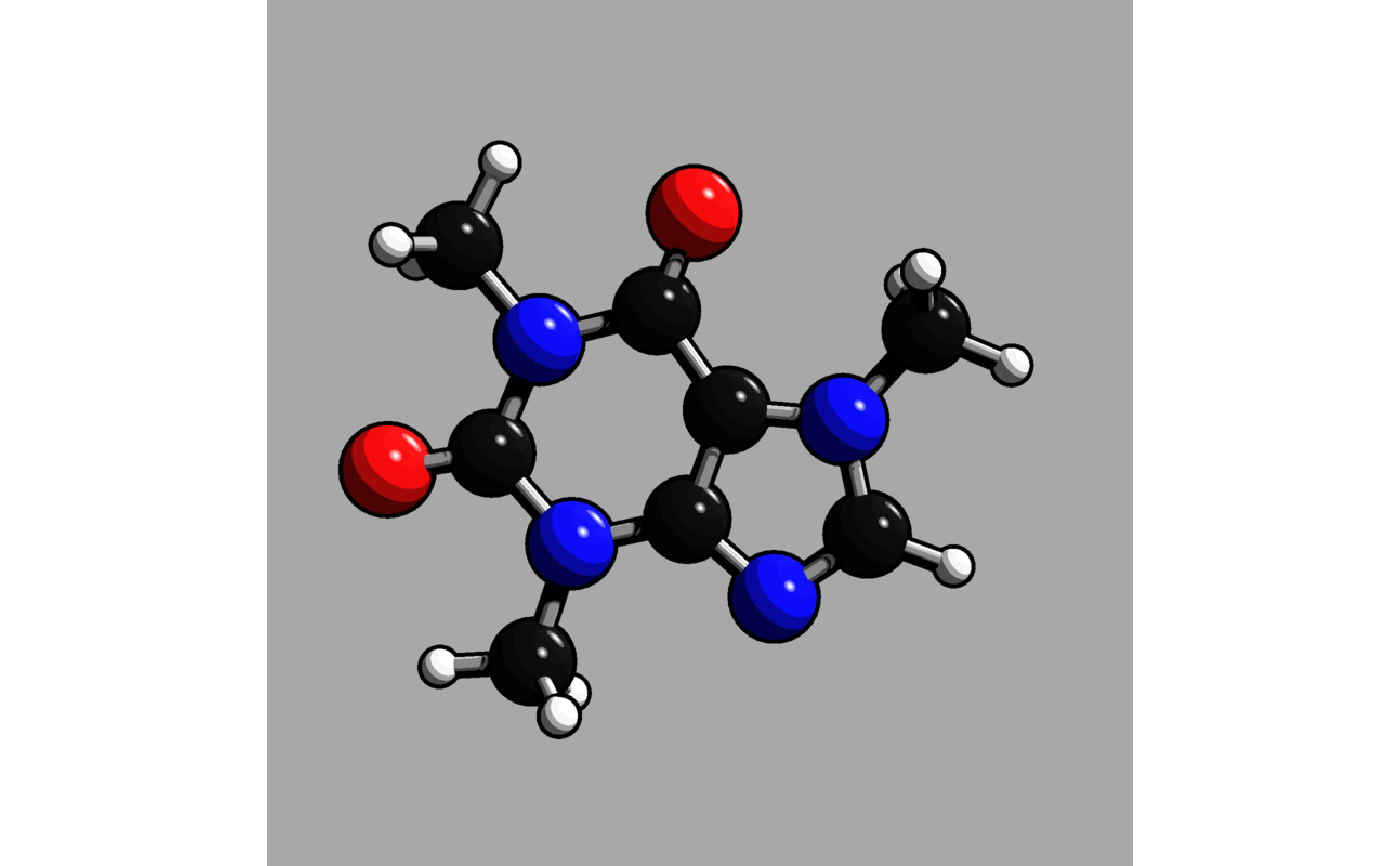

molecule_model |>
generate_full_scene(force_single_bonds = TRUE) |>
render_model(
pathtrace = FALSE,
width = 800,
height = 800,
background = "grey12"
)
# This version changes the scale, keeps the model centered, and uses a
# diffuse mesh material for both atoms and bonds before pathtracing.

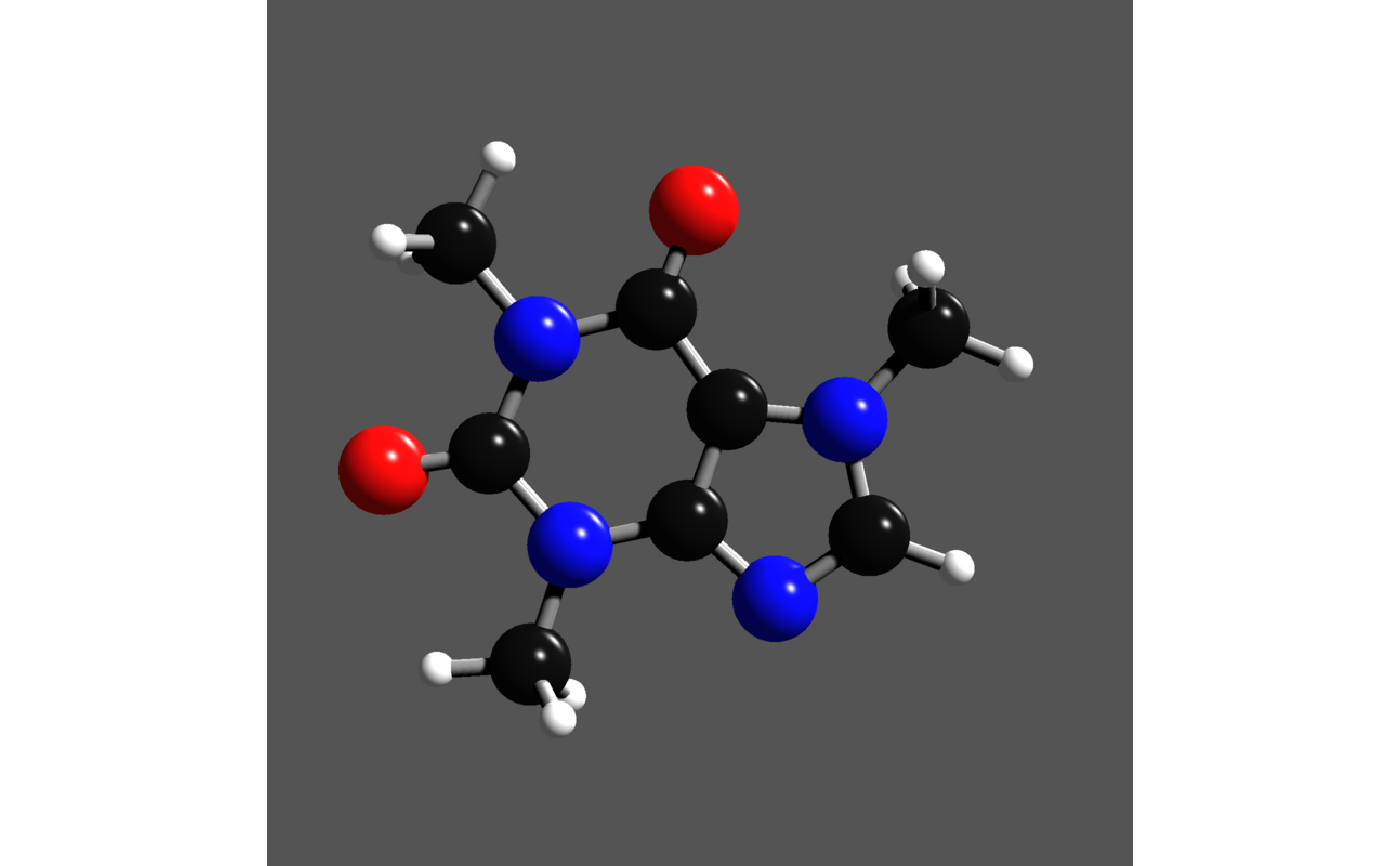

molecule_model |>
generate_full_scene(
x = 0,
y = 0,
z = 0,
scale = 0.75,
center = TRUE,
force_single_bonds = TRUE,
material = rayrender::diffuse,
material_args = list(sigma = 0.3)
) |>
render_model(pathtrace = TRUE, width = 800, height = 800, samples = 32)

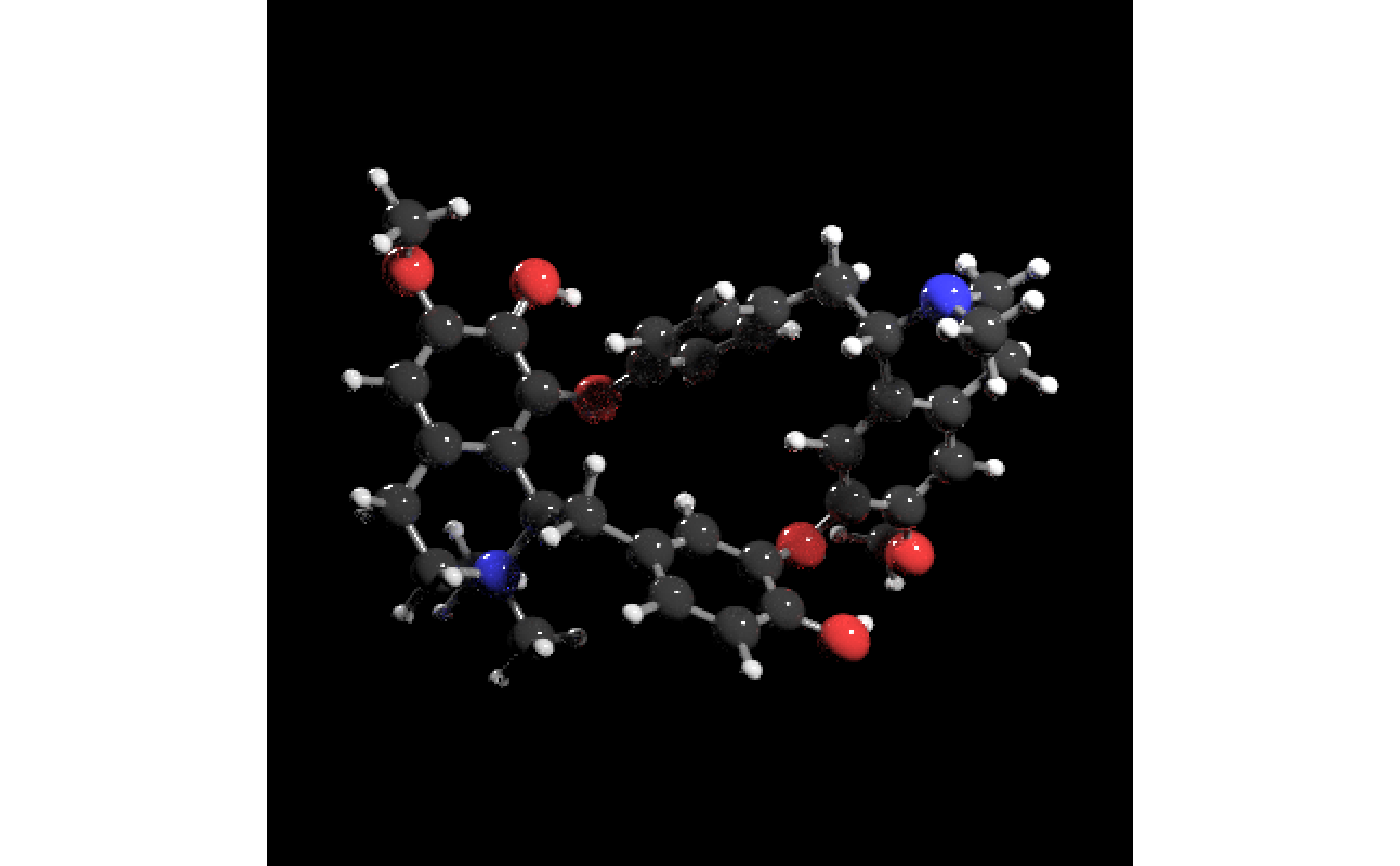

# A toon material changes the raster shader and pass FSAA to render_model()
# so rayvertex adds anti-aliasing.
shiny_toon_material = rayvertex::material_list(
type = "toon_phong",
toon_levels = 3,
toon_outline_width = 10,
toon_outline_color = "white"
)

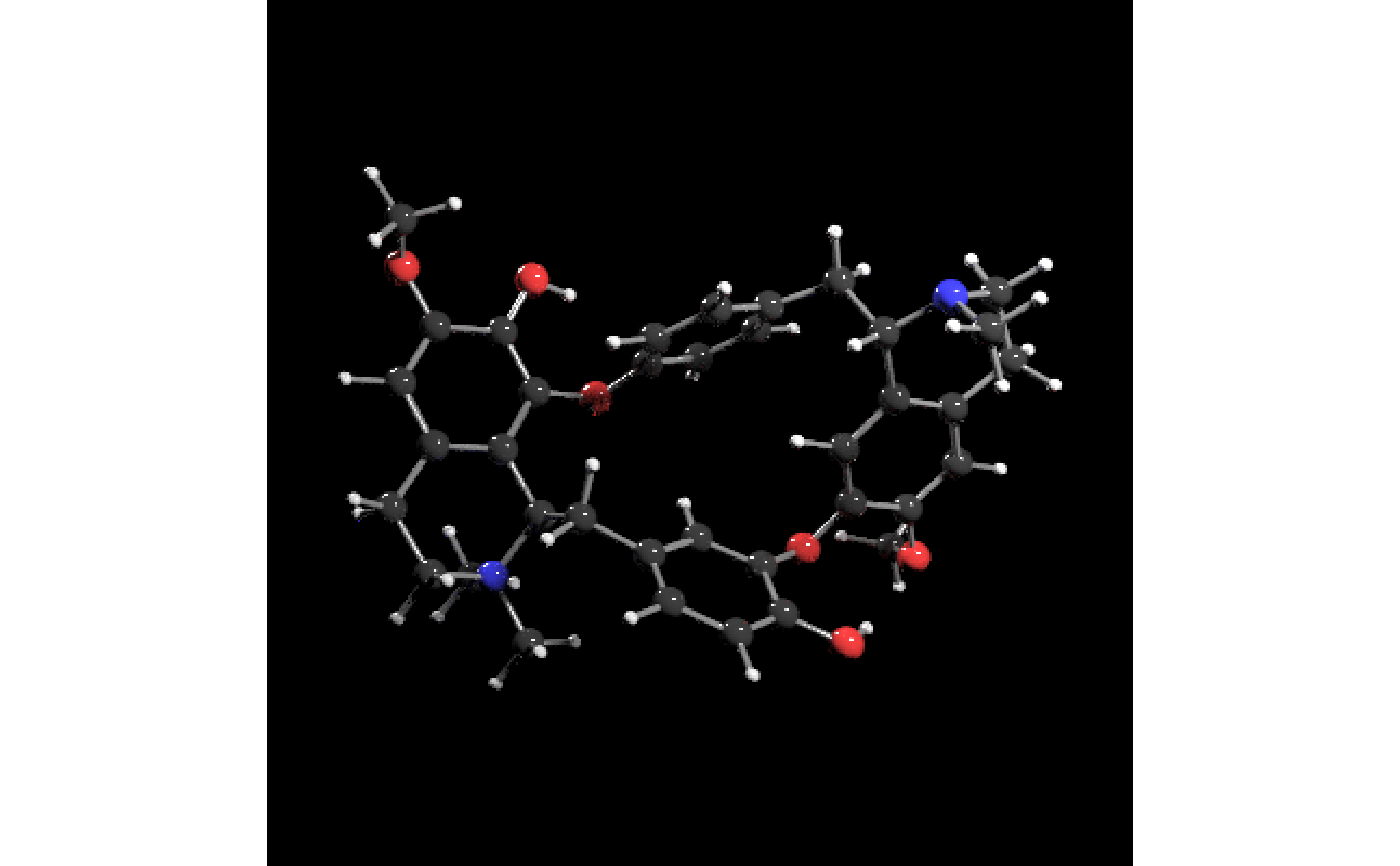

morphine_model = read_sdf(get_example_molecule("morphine"))
morphine_model |>
generate_full_scene(
material_vertex = shiny_toon_material
) |>
render_model(
fsaa = 2,
pathtrace = FALSE,
width = 800,
height = 800,
background = "grey50"
)
